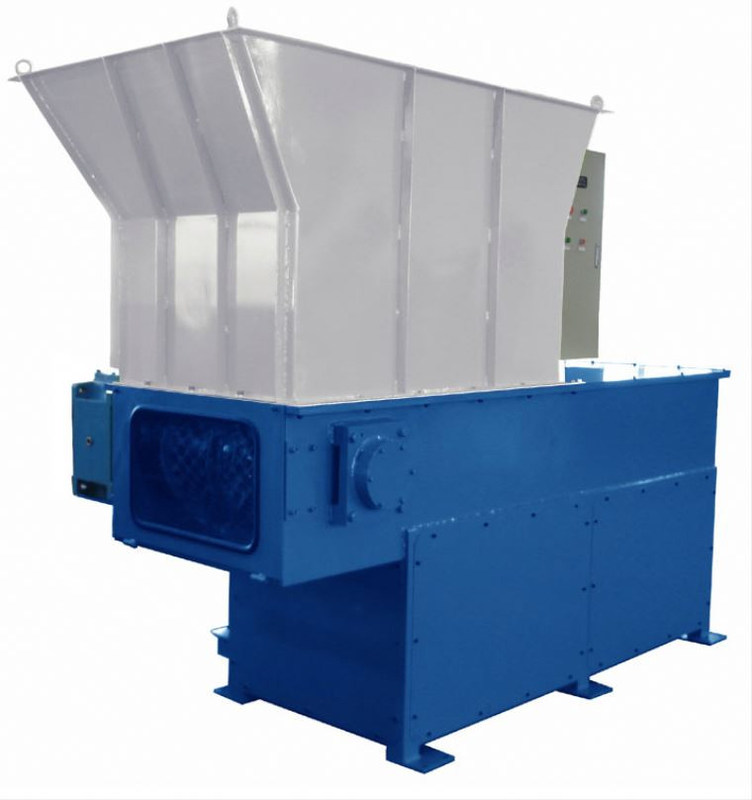

LLDPE Plastic Grinder Machine For Rotomolding Products, Etc.
Part I, Specifications of Crusher machine
◇ This machine is suitable for crush many kind of plastic products like plastic lumps, plastic sheet, plastic injection waste material and lumps and plastic film
◇ Low energy consumption, easy to install, operate and maintain
◇ Change the different diameter sieve, can get different size of final scrap.
◇ Machine automatic stop when the cutting blades are exposed.
◇ Dust curtain fitted at the feed hopper and the discharge
| NO | Description | Parameter | |
|
|||
| 1 | Power supply | Motor power | 30Kw |
| Voltage | 380V,50HZ | ||
| 2 |
Machine Chamber |
Size of crushing room | 805*450mm |
| Material of knife rest | 45# steel | ||
| Main shaft(diameter) | 110±0.01mm | ||
| Material of main shaft | 45# Steel | ||
| 3 | Knife | Quantity of rotary knife | 30pcs |
| Quantity of fixed knife | 4set | ||
| Material of blade | SKD-11 | ||
| 4 | Capacity | Output | Around 300kg/h, based on material |
| Thickness of screen mesh | 6mm | ||
| Material of screen sieve | A3 steel | ||
| Screen mesh | 10mm | ||
| 5 |
Electrical parts |
Electrical cabinet | 1set |
| Phase sequence protection | Schneider | ||
| Contactor | Schneider | ||
| Electrical Relays | Siemens | ||
| Sudden stop switch | Made in Taiwan | ||
| Ampere meter | Made in Taiwan | ||
| Outer cover | 1set | ||
|
6
|
Machine | Dimension(L*W*H) | 2000*1480*2300mm |
| Weight | 2100kg | ||
| Surface treatment | spraying plastics | ||
| Bearing | With a device for lubrication with a syringe | ||
| Open the cover | By manual | ||
|
